Hydraulic Cylinder With MTS Transducer For Servo Press Machine

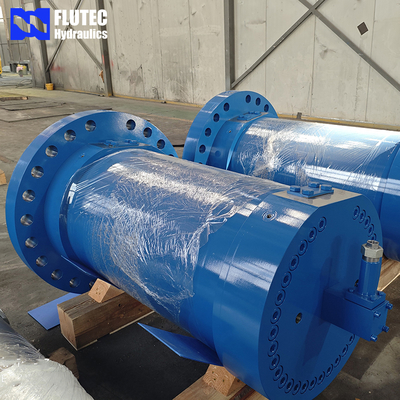

Grande immagine : Hydraulic Cylinder With MTS Transducer For Servo Press Machine

Dettagli:

Luogo di origine:	Jiangsu, Cina
Marca:	Flutec
Certificazione:	ISO9001,Dnv, SGS, BV, ABS, Gl
Numero di modello:	5987
Documento:	Brochure del prodotto PDF

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1 pezzo
Prezzo:	$ 500- $ 100000
Imballaggi particolari:	Cassa in legno standard, idonea per la navigazione
Tempi di consegna:	30 giorni
Termini di pagamento:	L/ct/td/p

Contatto

Descrizione di prodotto dettagliata

Modello n.:	5987	Struttura:	Tipo di pistone
Materiale:	Acciaio al carbonio	Pacchetto di trasporto:	Cassa in legno standard, idonea per la navigazione
Marchio:	FLUTEC	Origine:	Jiangsu, Cina
Codice HS:	8412210090	Capacità di alimentazione:	10000
Certificazione:	ISO9001, Dnv, SGS, BV, ABS, Gl	Pressione:	Pressione media
Temperatura di lavoro:	Temperatura normale	Il modo di agire:	Doppio recitazione
Metodo di lavoro:	Viaggio dritto	Forma adeguata:	Tipo regolamentato
Personalizzazione:	Disponibile \| Richiesta personalizzata	nome:	Silindri idraulici personalizzati
Evidenziare:	Hydraulic cylinder with MTS transducer , Servo press machine hydraulic cylinder , Custom hydraulic cylinder with transducer

Οι υδραυλικοί κύλινδροι των γεωτρυπάνων χρησιμοποιούνται σε διάφορες πτυχές της διαδικασίας γεώτρησης. Οι κύλινδροι χρησιμοποιούνται για τον έλεγχο της κάθετης κίνησης της γεωτρυπάνου, παρέχοντας την απαραίτητη δύναμη για τη γεώτρηση στον βυθό της θάλασσας. Αυτοί οι κύλινδροι πρέπει να μπορούν να λειτουργούν με ακρίβεια και συνεχώς για μεγάλες περιόδους, καθώς οποιαδήποτε διακοπή στη διαδικασία γεώτρησης μπορεί να είναι εξαιρετικά δαπανηρή.

Εκτός από την κάθετη κίνηση, οι υδραυλικοί κύλινδροι χρησιμοποιούνται επίσης για την περιστροφή του τρυπανιού. Η ροπή που παράγεται από αυτούς τους κυλίνδρους πρέπει να ελέγχεται με ακρίβεια για να εξασφαλίζεται η αποτελεσματική διάτρηση. Οι υδραυλικοί κύλινδροι των γεωτρυπάνων συχνά σχεδιάζονται με εφεδρικά συστήματα για να ενισχύεται η αξιοπιστία. Σε περίπτωση βλάβης ενός κυλίνδρου ή εξαρτήματος, το εφεδρικό σύστημα μπορεί να αναλάβει τη λειτουργία, επιτρέποντας τη συνέχιση της διάτρησης.

Translated with DeepL.com (free version)

Product Description

Welcome to FLUTEC HYDRAULICS!

Technical Data

Cylinder Type	Mill type, Head Bolted, Base Welded
Bore Diameter	Up to 2500mm
Rod Diameter	Up to 2000mm
Stroke Length	Up to 20,000mm
Piston Rod Material	AISI 1045, AISI 4140, AISI 4340, 20MnV6, Stainless steel 2Cr13 or 1Cr17Ni2
Rod Surface Treatment	Hard chrome plated, Chrome/Nickel plated, Ceramic coated
Tube Material	Carbon steel AISI1045 or ST52.3, Alloy steel AISI4140 or 27SiMn
Tube Surface Painting	Colors according to RAL and thickness according to customer needs
Mounting Type	Clevis, Cross tube, Flange, Trunnion, Tang, Thread
Design Pressure	Up to 40Mpa
Seal Kits Type	PARKER, MERKEL, HALLITE, , TRELLEBORG
Quality Assurance	1 year
Certificate	SGS, BV, ABS ,GL, DNV etc.
Application	Mobile Equipment,Cement Mill, steel mill, Hydraulic press, etc.

Quality Assurance

Quality Process	Our quality management system is certified to ISO 9001
	Quality control standards include material records, process control plans,
	Manufacturing approvals and inspection data
Testing Standards	All products undergo 100% pressure testing 1.5 times the maximum allowable working pressure or to customer specifications
	Static and dynamic pressure testing.
	Ultraviolet leak detection technology.
	Non-destructive testing.
Fluid Cleanliness	Real-time monitoring and test phase documentation
Fluid Cleanliness	Independent sampling and oil diagnostic control

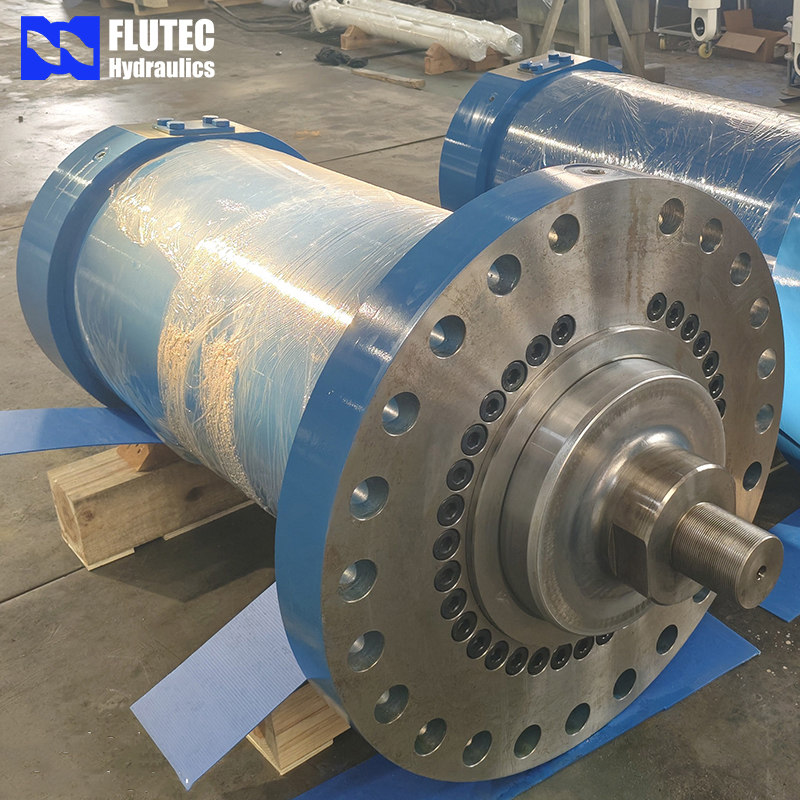

Hydraulic Cylinder With MTS Transducer For Servo Press Machine 3

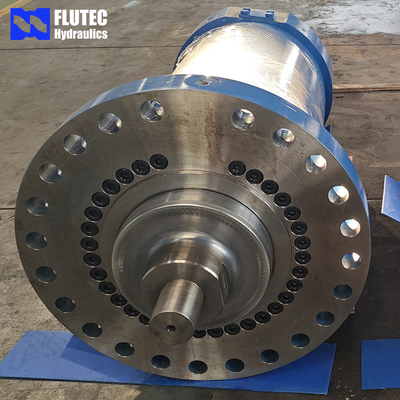

Hydraulic Cylinder With MTS Transducer For Servo Press Machine 4

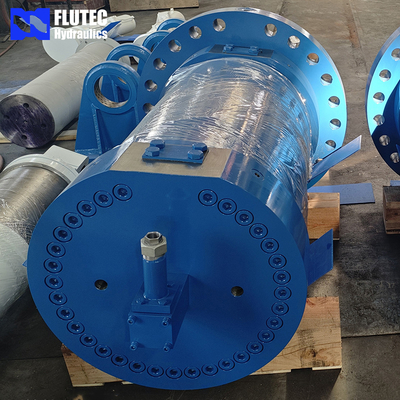

Hydraulic Cylinder With MTS Transducer For Servo Press Machine 5

FLUTEC HYDRAULICS is an expert at designing and manufacturing a broad range of custom engineered hydraulic cylinders and cylinder systems as well as custom engineered press bolster plates. We are proud to offer superior quality products and services for various applications including industrial, construction, mobile, agricultural, mining, steel mill, hydraulic press, etc. Our highly skilled team and modern technical facilities allow us to manufacture large bore hydraulic cylinders and long stroke hydraulic cylinders with 100% confidence and assurance.

We understand our customers need dependable quality and excellent services with affordable cost to stay ahead in today's highly competitive market. FLUTEC HYDRAULICS can meet those requirements with our robust, efficient and long life products together with prompt services.

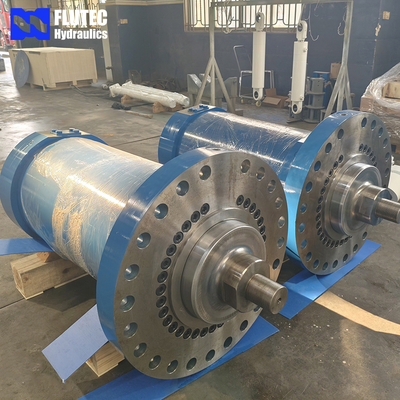

To be mentioned, our sales team is strictly trained both in technology and language. They are full of experiences in fluid power and machinery. We are glad to personally visit our customers to work better. Hydraulic Cylinder With MTS Transducer For Servo Press Machine 6

Hydraulic Cylinder With MTS Transducer For Servo Press Machine 6

Q1: What does your company do?
A: we are a supplier of high-quality hydraulic products including Hydraulic Cylinder,Honed Tube,Chromed Rod,Machined Platen,Cylinder Parts, and other components.

Q2:Are you a manufacturer or trading company?
A: We are a manufacturer.

Q3: Are you able to make Non-standard or customized products?
A: Yes, we can.

Q4: How long is your delivery time?
A: The delivery time for customized products is 15-30 working days.But it also depends on the product requirements and quantity.

Q5: Do you provide samples?
A: No, we don't provide samples.

Q6: What are your payment terms?
A: T/T/ or L/C or D/P. If you have any questions, please feel free to contact us.

Q7: What are your After-sales services?
A: Before shipment, Each individual product will be strictly inspected on our factory QC Process System. In addition, We have a Customer Service team to respond to customers' questions within 12 hours. Being helpful in solving customers' problems is always our goal.
